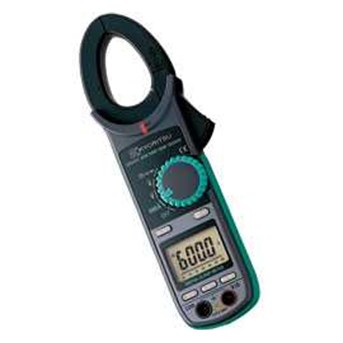

KYORITSU 2040 Digital Clamp Meters

• Designed to meet international safety standard IEC 61010-1 CAT.IV 600V. • CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits. • Thus, very useful for power distribution companies, power utilities and maintenance fields. • Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage. • Double molding gives comfortable feeling in palm. • 6039 counts with Bar Graph display. • MIN/MAX function enables to keep easily min & max value during measurement. AC A : 0~600.0A |±1.5%rdg±5dgt (50/60Hz) |±3.5%rdg±8dgt (40~400Hz) AC V : 6/60/600V Auto Ranging |±1.3%rdg±4dgt (50/60Hz) |±3.0%rdg±5dgt (40~400Hz) DC V : 600m/6/60/600V Auto Ranging |±1.0%rdg±3dgt © : 600/6k/60k/600k/6M/60M© (Auto Ranging) |±1%rdg±5dgt (600~6M) / ±5%rdg±8dgt (60M) Continuity buzzer : Buzzer Sounds at 100© Frequency/DUTY : 10/100/1k/10kHz (Auto Ranging) / 0.1~99.9% Conductor Size : Ø33mm Withstand Voltage : 6880V AC for 5 seconds Safety Standard : IEC 61010-1 CAT.IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 Power Source : R03 (1.5V) (AAA) × 2 Dimensions : 243(L) × 77(W) × 36(D)mm Weight : 300g Accessories : 7066 (Test Lead) 9094 (Carrying Case) Instruction Manual
